CNMG431-M3 TP3501
Seco

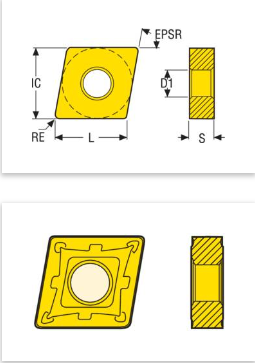

| Name | Description | Value |
|---|---|---|
| AN | clearance angle major | 0.000 deg |
| Barcode | Product barcode | 93854030001007 |
| CBMD | chip breaker manufacturers designation | M3 |
| D1 | fixing hole diameter | 0.203 in |
| EPSR | insert included angle | 80.000 deg |
| Grade | Grade | TP3501 |
| IC | inscribed circle diameter | 0.500 in |
| ItemNumber | Item Number | 03093854 |
| L | Theoretical cutting edge length | 0.508 in |
| RE | corner radius | 0.016 in |
| S | Insert thickness | 0.187 in |
| Weight | Net weight | 0.020 lb |
