CT150 Coating Thickness Gauge

Features
●Both magnetic and eddy current thickness
measurement methods are used to measure the
thickness of the non-magnetic coating on the
magnetic metal substrate and the thickness of the non-conductive coating on the non-magnetic metal substrate.
●Split (the sensor and the instrument are connected by wires), dual-purpose (F-type N-type in one)
●Unique temperature compensation algorithm
●There are two measurement modes: continuous
measurement mode (CONTINUE) and single
measurement mode

（SINGLE）
●Withstatisticalfunctions:averagevalue (MEAN), maximum value (MAX), minimum value MIN),numberoftests (NO.),
standarddeviation (S.DEV)
●Withstoragefunction:canstore 500
measuredvalues

Application range
Widely usedin metalprocessing,chemicalindustry,commodity inspection,electroplating,spraying,pipelineanticorrosion,
aluminum profile,steelstructureandotherindustries,and also suitableforshipbuilding,aerospace,electricpower,potspecial inspection,technicalsupervisionbureau andotherindustries.

Availability:

Quantity:



Inquire Add to Basket

Model:
CT150
Brand:
WITAIK

Product Description

Features
●Both magnetic and eddy current thickness
measurement methods are used to measure the
thickness of the non-magnetic coating on the
magnetic metal substrate and the thickness of the non-conductive coating on the non-magnetic metal substrate.
●Split (the sensor and the instrument are connected by wires), dual-purpose (F-type N-type in one)
●Unique temperature compensation algorithm
●There are two measurement modes: continuous
measurement mode (CONTINUE) and single
measurement mode

（SINGLE）
●Withstatisticalfunctions:averagevalue (MEAN), maximum value (MAX), minimum value MIN),numberoftests (NO.),
standarddeviation (S.DEV)
●Withstoragefunction:canstore 500
measuredvalues

Application range
Widely usedin metalprocessing,chemicalindustry,commodity inspection,electroplating,spraying,pipelineanticorrosion,
aluminum profile,steelstructureandotherindustries,and also suitableforshipbuilding,aerospace,electricpower,potspecial inspection,technicalsupervisionbureau andotherindustries.

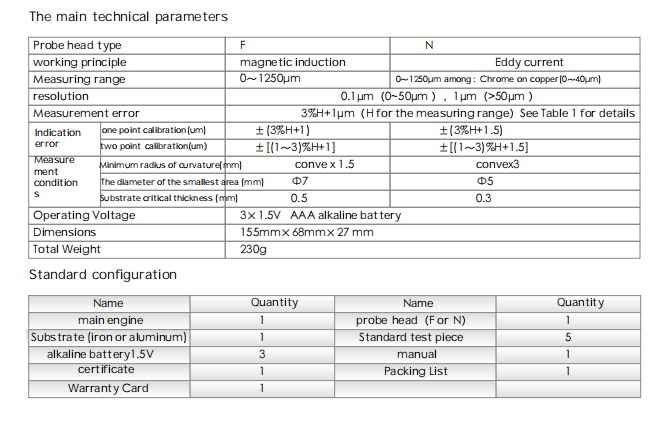

微信截图_20230728155223

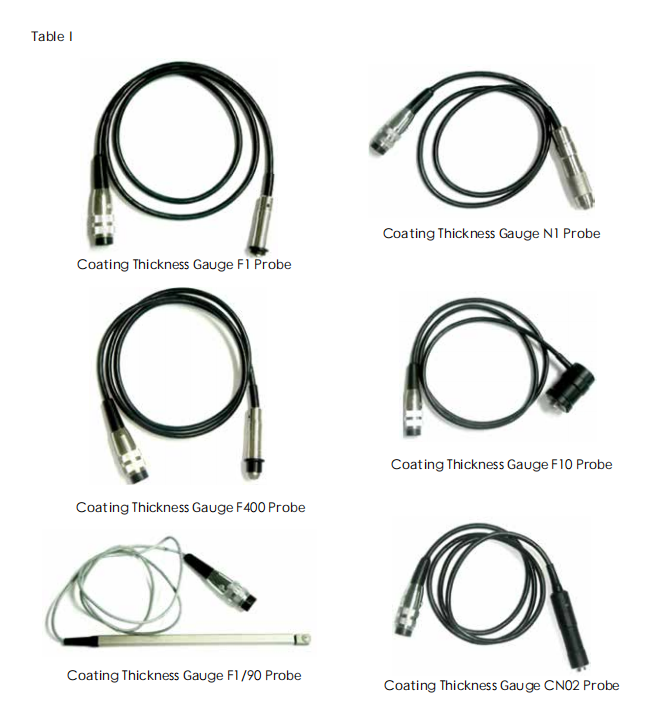

微信截图_20230728155236

Coating Thickness Gauge
